■ 任意の仕様・形状を短納期でお届け！ 新システムによるイージーオーダー！！

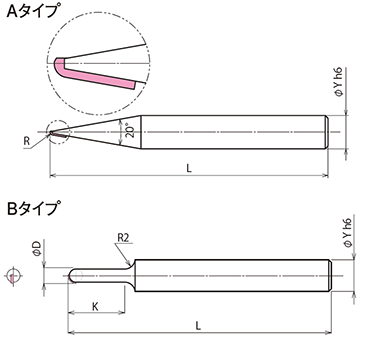

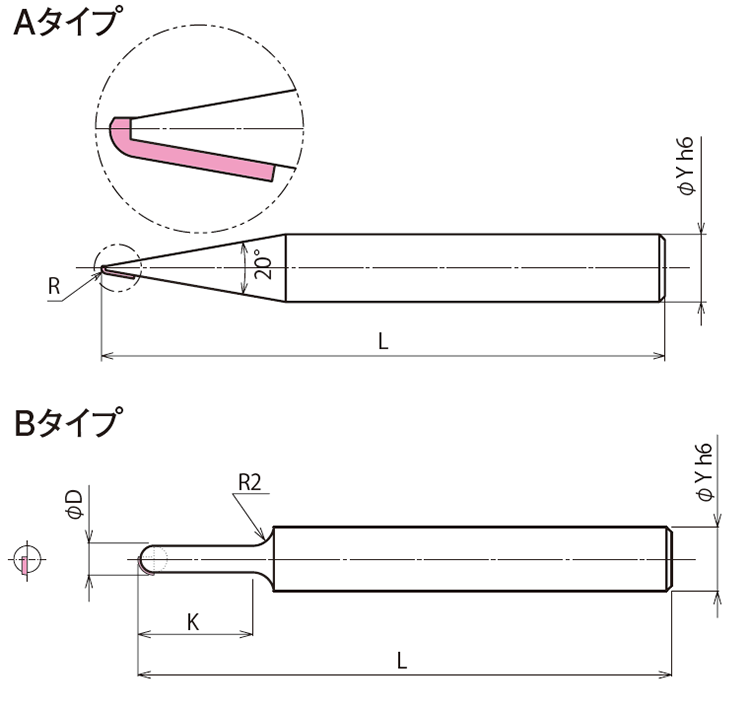

| 球半徑 | 外 徑 | 鑽石長 | 頸部 | 柄徑 | 全 長 | NT$價格／１支 | ||
|---|---|---|---|---|---|---|---|---|
| R | φD | 刃長 | K | φY | L | 1支 | 2支 | 3支 |
| 0.1 | --- | 2 | － | 3.0 | 50 | 83,000 | 78,900 | 74,700 |
| 0.15 | --- | 2 | － | 3.0 | 50 | 78,000 | 74,100 | 70,200 |
| 0.2 | --- | 2 | － | 3.0 | 50 | 73,000 | 69,400 | 65,700 |
| 0.25 | --- | 2 | － | 3.0 | 50 | 69,000 | 65,600 | 62,100 |
| 0.3 | --- | 2 | － | 3.0 | 50 | 63,000 | 59,900 | 56,700 |
| 0.4 | --- | 2 | － | 3.0 | 50 | 59,000 | 56,100 | 53,100 |
| 0.5 | 1.0 | 2 | 5 | 3.0 | 50 | 57,000 | 54,200 | 51,300 |
| 1 | 2.0 | 2 | 10 | 3.0 | 50 | 55,000 | 52,300 | 49,500 |
| 1.5 | 3.0 | 2 | 10 | 3.0 | 50 | 52,000 | 49,400 | 46,800 |
| 2 | 4.0 | 2 | 10 | 6.0 | 50 | 60,000 | 57,000 | 54,000 |
| 2.5 | 5.0 | 2.5 | 10 | 6.0 | 50 | 64,000 | 60,800 | 57,600 |
| 3 | 6.0 | 3 | 10 | 6.0 | 50 | 70,000 | 66,500 | 63,000 |
| R精度 | R0.5～1.5 | ±0.02 |
|---|---|---|
| R2～3 | ±0.03 |
